Artifacts

Published Reports and Visuals

Central access point for antenna simulations, Python simulation outputs, and visuals.

Antenna Simulation Report

Status: Mostly current (historical Phase-0 context)

File: AERIS_Antenna_Report.pdf

Notes: Valid for 10.5 GHz patch-element simulation and array projection context. Treat as element-level evidence, not full current hardware bring-up sign-off.

Open PDF Download

Python Simulation Report

Status: Legacy (needs refresh)

File: AERIS_Simulation_Report.pdf

Notes: Contains older architecture assumptions (e.g., XC7A100T-centric narrative). Use as historical reference only until Simulation Report v2 is published.

Open PDF Download

Latest Simulation Report (Recommended)

Status: Current baseline (v2)

File: AERIS_Simulation_Report_v2.pdf

Aligned to current project baseline: XC7A200T target, Build 13 freeze, regression/timing/CDC gates, ILA readiness, and TE0712/TE0713 split-target flow.

Open PDF Download

Report Currency Notice

Current implementation baseline is Build 13 on XC7A200T with full regression/timing closure campaign completed.
The simulation PDF currently published predates part of this migration and should not be treated as the latest hardware-equivalent verification record.
A revised Simulation Report v2 should align with current FPGA target, test coverage, and TE0712/TE0713 bring-up split flow.

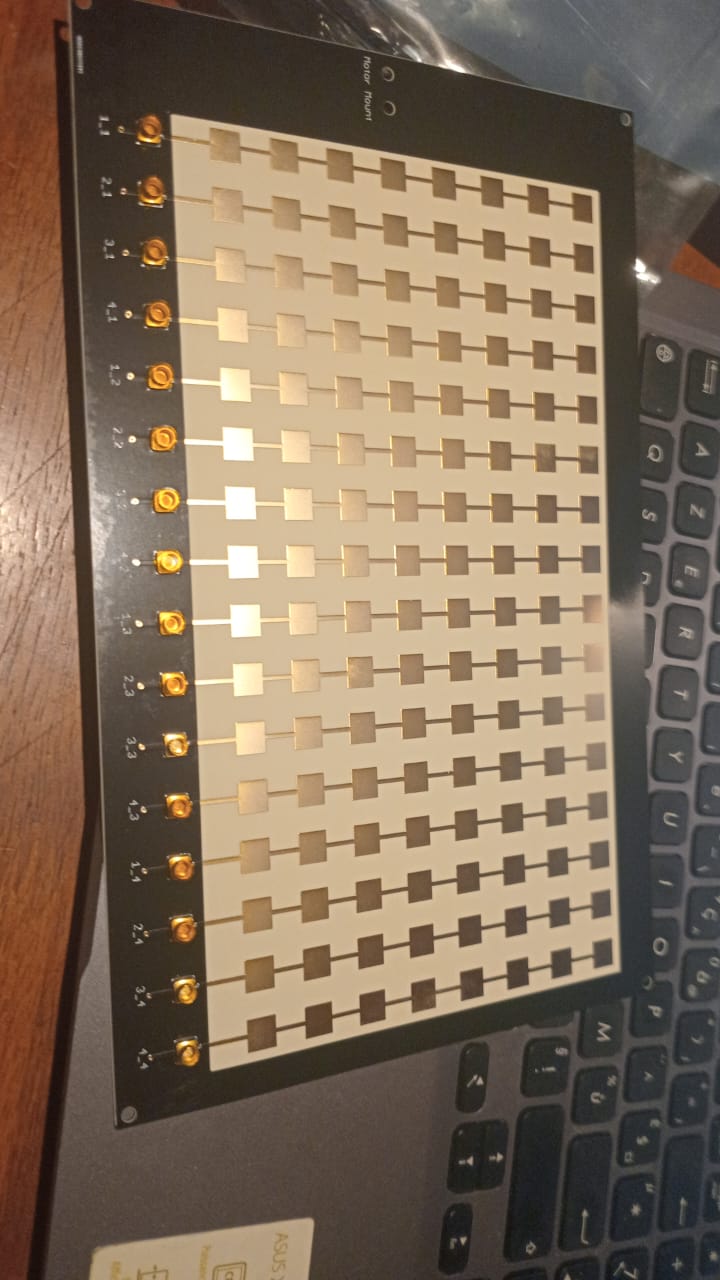

Antenna concept snapshot
